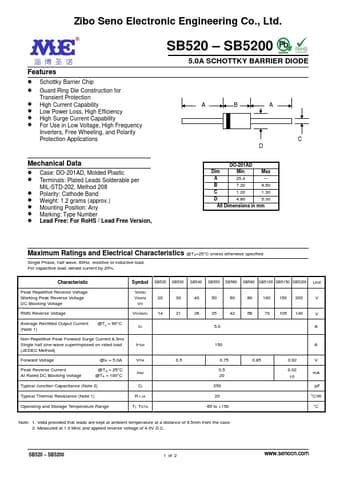

SB5100
Features
! Schottky Barrier Chip
! Guard Ring Die Construction for
Transient Protection ! High Current Capability ! Low Power Loss, High Efficiency ! High Surge Current Capability ! For Use in Low Voltage, High Frequency
Inverters, Free Wheeling, and Polarity
Protection Applications
D
Mechanical Data
! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx.) ! Mounting Position: Any ! Marking: Type Number ! Lead Free: For Ro HS / Lead Free Version,
DO-201AD Dim Min Max
A 25.4
- B 7.20 9.50 C 1.20 1.30 D 4.80 5.30
All Dimensions in mm
Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol SB520 SB530 SB540 SB550 SB560 SB580 SB5100 SB5150...
