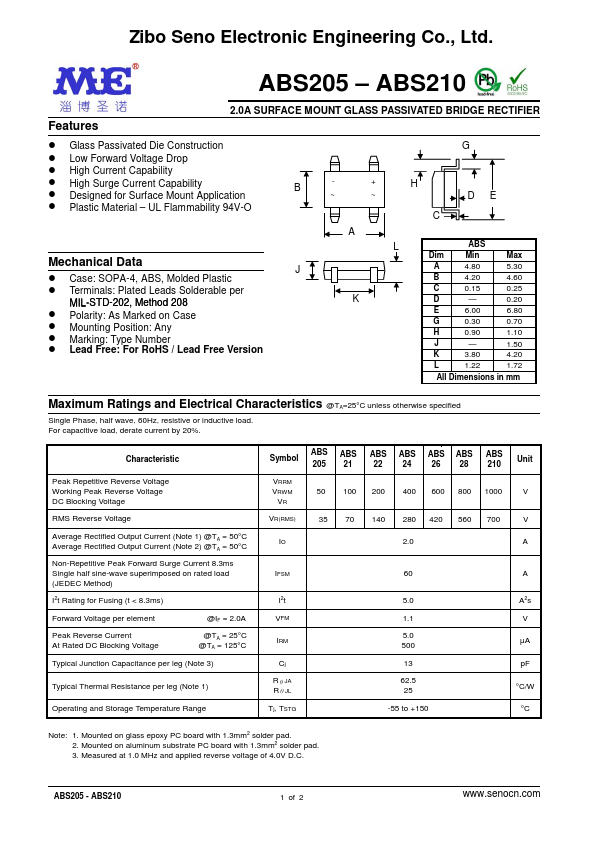

ABS28
Features
2.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
! Glass Passivated Die Construction
! Low Forward Voltage Drop
! High Current Capability
! High Surge Current Capability ! Designed for Surface Mount Application
! Plastic Material
- UL Flammability 94V-O
Mechanical Data
J ! Case: SOPA-4, ABS, Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: As Marked on Case ! Mounting Position: Any ! Marking: Type Number ! Lead Free: For Ro HS / Lead Free Version
- +
~
~
Dim
Min
Max
- 0.20
- 1.50
All Dimensions in mm
Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Peak...
