ZTS6856SE - Low Noise Bottom Port MEMS Microphone

ZillTek

The ZTS6856SE by ZillTek is a Low Noise Bottom Port MEMS Microphone. Below is the official datasheet preview.

📥 Download Datasheet

ZTS6856SE Low Noise Bottom Port MEMS Microphone by ZillTek - Datasheet Preview — Official preview page of the ZTS6856SE Low Noise Bottom Port MEMS Microphone datasheet (ZillTek).

Datasheet Details

Part number	ZTS6856SE
Manufacturer	ZillTek
File Size	758.99 KB
Description	Low Noise Bottom Port MEMS Microphone
Datasheet	ZTS6856SE-ZillTek.pdf

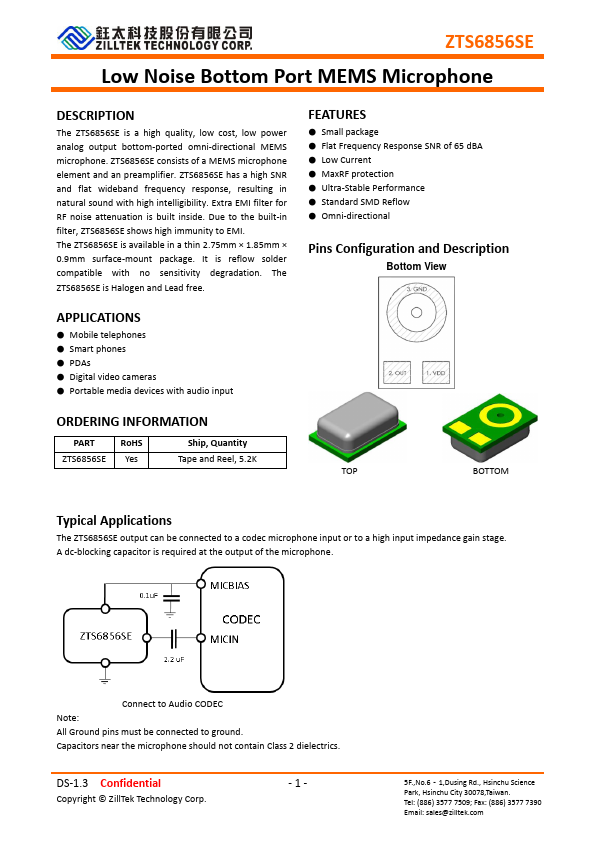

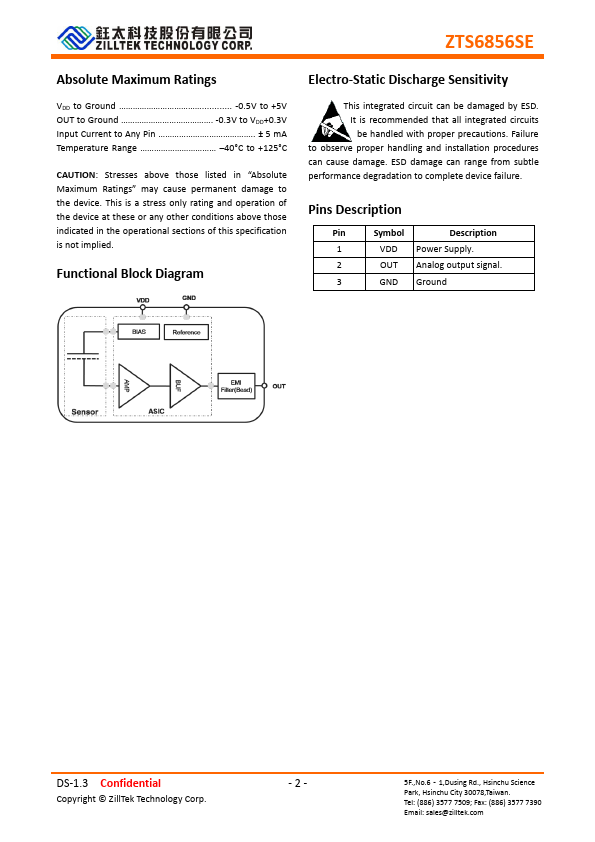

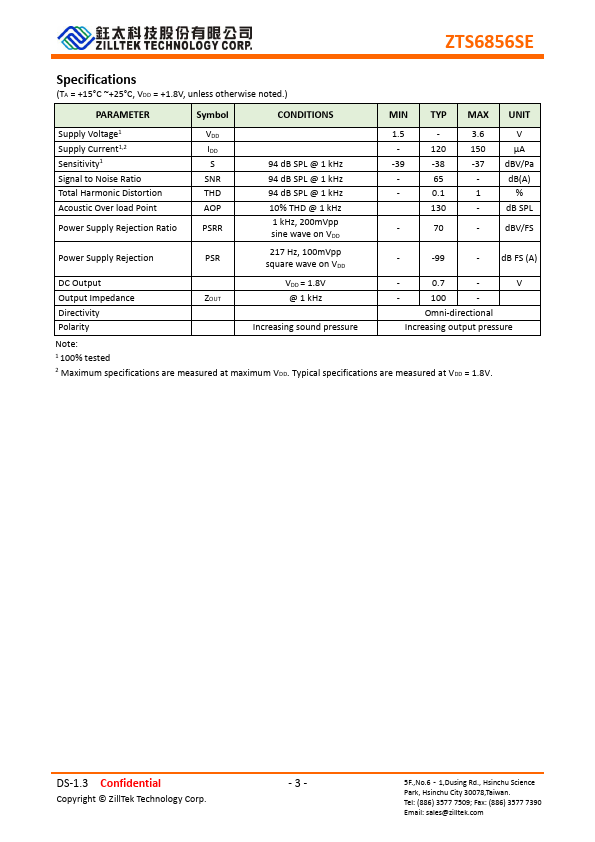

Additional preview pages of the ZTS6856SE datasheet.

ZTS6856SE Product details

Description

The ZTS6856SE is a high quality, low cost, low power analog output bottom-ported omni-directional MEMS microphone.

Features

Small package.
Flat Frequency Response SNR of 65 dBA.
Low Current.
MaxRF protection.
Ultra-Stable Performance.
Standard SMD Reflow.
Omni-directional Pins Configuration and.
