Z86L98ZEM

Z8 In-Circuit Emulator

Z86L98ZEM Features

* Package Emulation 28 PDIP 28 SOIC Z86L81/2/5/6/8 Z86L98 Z86L81/2/5/6/8 Z86L98 OTP Z86D86

* Z86D86

* Required accessories 28 PDIP emulation pod 28 PDIP OTP Adapter (PC ASSY#99C0667-001) 28 PDIP emulation pod and a DIP to SOIC conversion adapter (AS-DIP 6-028-S003-1 or AS-DIP-6-028-S003-2) fro

Z86L98ZEM General Description

ZiLOG's in-circuit emulators are interactive, Windows-oriented development tools, providing a real-time environment for emulation and debugging. The Z86L98 emulator (Z86L9800ZEM) is a member of ZiLOG's ICEBOXª product family of in-circuit emulators. The emulator provides essential timing and I/O cir.

Z86L98ZEM Datasheet (166.73 KB)

Preview of Z86L98ZEM PDF

Datasheet Details

Part number:

Z86L98ZEM

Manufacturer:

Zilog

File Size:

166.73 KB

Description:

Z8 in-circuit emulator.

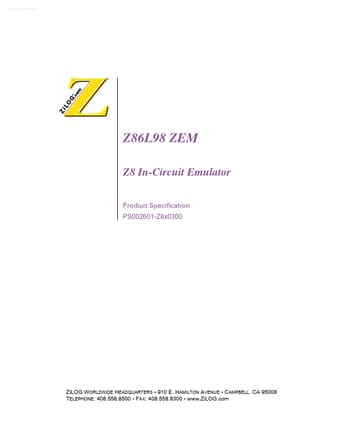

www.DataSheet4U.com Z86L98 ZEM Z8 In-Circuit Emulator Product Specification PS002601-Z8x0300 ZiLOG WORLDWIDE HEADQUARTERS
* 910 E. HAMILTON AVEN.
