1N4005E, 1N4001E SILICON RECTIFIER

1N4005E Description

1N4001E THRU 1N4007E SILICON RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere A-405 1.0(25.4) MIN.0.025(0.60) DIA.0.0.

1N4005E Features

* High relliability
* Low reverse leakage
* Low forward voltage drop
* High current capability 0.205(5.2) 0.166(4.2) 1.0(25.4) MIN. 0.107(2.70) 0.080(2.00) MECHANICAL DATA
* Dimensions in inches and (millimeters) Case : JEDEC A-405 molded plastic Epoxy : UL 94V-O rate flame r

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4005E, 1N4001E. Please refer to the document for exact specifications by model.

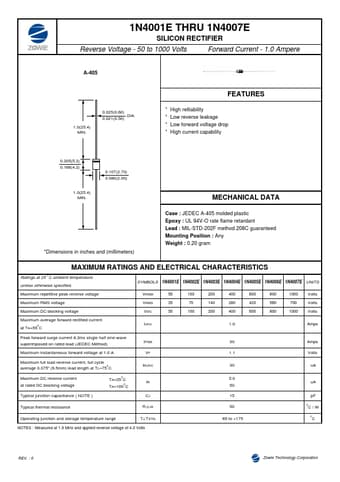

datasheet Preview Page 2

Datasheet Details

Part number
1N4005E, 1N4001E
Manufacturer
Zowie Technology Corporation
File Size
42.14 KB
Datasheet
1N4001E-ZowieTechnologyCorporation.pdf
Description
SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N4005E, 1N4001E.
Please refer to the document for exact specifications by model.
