HER204, HER201 - HIGH EFFICIENCY RECTIFIER

HER204 Description

HER201 THRU HER208 HIGH EFFICIENCY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes DO-204AC 0.140(3.6) 0.104(2.6) DIA..

HER204 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Low power loss, high efficiency
* Low leakage
* Low forward voltage drop
* High current capability
* High speed switching
* High current surge
* High reliability 0.300(7.6) 0.23

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HER204, HER201. Please refer to the document for exact specifications by model.

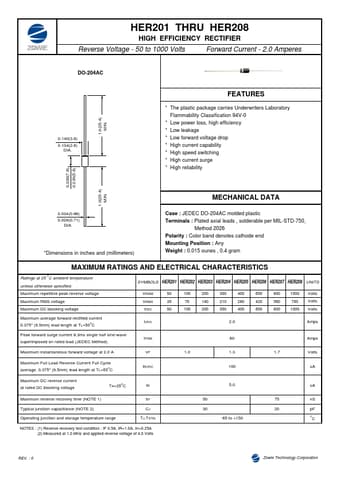

datasheet Preview Page 2

Datasheet Details

Part number
HER204, HER201
Manufacturer
Zowie Technology
File Size
47.43 KB
Datasheet
HER201-ZowieTechnology.pdf
Description
HIGH EFFICIENCY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: HER204, HER201.
Please refer to the document for exact specifications by model.
