RGF10M, RGF10A, SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

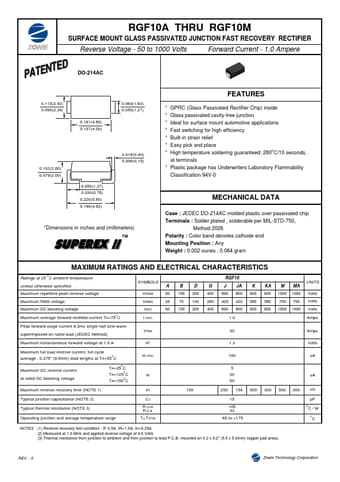

RGF10A THRU RGF10M SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere .

datasheet Preview Page 1 from Datasheet4u.com

RGF10A-ZowieTechnology.pdf

RGF10M Datasheet Preview — This datasheet PDF includes multiple part numbers: RGF10M, RGF10A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RGF10M, RGF10A

Manufacturer:

Zowie Technology

File Size:

58.40 KB

Description:

SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: RGF10M, RGF10A.
Please refer to the document for exact specifications by model.

Features

* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction

Applications

* Fast switching for high efficiency
* Built-in strain relief
* Easy pick and place
* High temperature soldering guaranteed: 260oC/10 seconds, at terminals
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA Case : JEDEC DO-214AC molded
