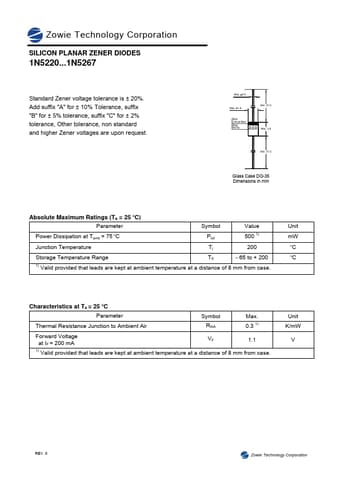

1N5226 SILICON PLANAR ZENER DIODES

Zowie Technology Corporation SILICON PLANAR ZENER DIODES 1N52201N5267 Standard Zener voltage tolerance is ± 20%. Add suffix "A" for ± 10% Tolerance, suffix "B" for ± 5% tolerance, suffix "C" for ± 2% tolerance, Other tolerance, non standard and higher Zener voltages are upon request. Max. 0.5 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 3.9 Min. 27.5 Glass Case DO-35 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Power Dissipation at Ta.
