1N5229, 1N5220 Datasheet - Zowie

1N5229 SILICON PLANAR ZENER DIODES

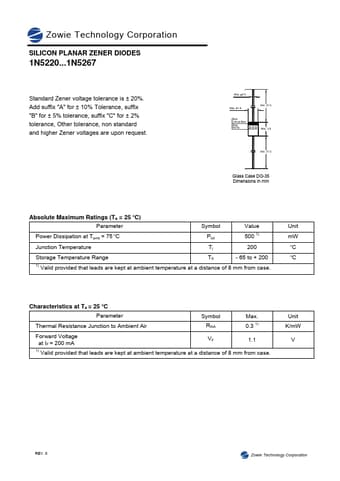

Zowie Technology Corporation SILICON PLANAR ZENER DIODES 1N52201N5267 Standard Zener voltage tolerance is ± 20%. Add suffix "A" for ± 10% Tolerance, suffix "B" for ± 5% tolerance, suffix "C" for ± 2% tolerance, Other tolerance, non standard and higher Zener voltages are upon request. Max. 0.5 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 3.9 Min. 27.5 Glass Case DO-35 Dimensions in mm Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Power Dissipation at Ta.

1N5229, 1N5220 Datasheet

This datasheet PDF includes multiple part numbers: 1N5229, 1N5220. Please refer to the document for exact specifications by model.
1N5229 Datasheet Preview Page 2 1N5229 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5229, 1N5220

Manufacturer:

Zowie

File Size:

116.18 KB

Description:

Silicon planar zener diodes.

This datasheet PDF includes multiple part numbers: 1N5229, 1N5220. Please refer to the document for exact specifications by model.
