EGF20AH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

EGF20AH Description

EGF20AH THRU EGF20MH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampe.

EGF20AH Features

* Halogen-free type
* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction

EGF20AH Applications

* Superfast recovery time for high efficiency
* Built-in strain relief
* Easy pick and place
* High temperature soldering guaranteed: 260oC/10 seconds, at terminals
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA Case : JEDEC DO-214

📥 Download Datasheet

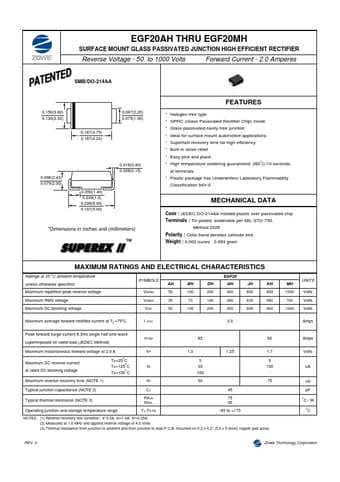

Preview of EGF20AH PDF
datasheet Preview Page 2

Datasheet Details

Part number
EGF20AH
Manufacturer
Zowie
File Size
51.59 KB
Datasheet
EGF20AH-Zowie.pdf
Description
SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
