EGF30DH - SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

This page provides the datasheet information for the EGF30DH, a member of the EGF30AH SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER family.

Datasheet Summary

Features

  • Halogen-free type.
  • GPRC (Glass Passivated Rectifier Chip) inside.
  • Glass passivated cavity-free junction.
  • Ideal for surface mount automotive.

📥 Download Datasheet

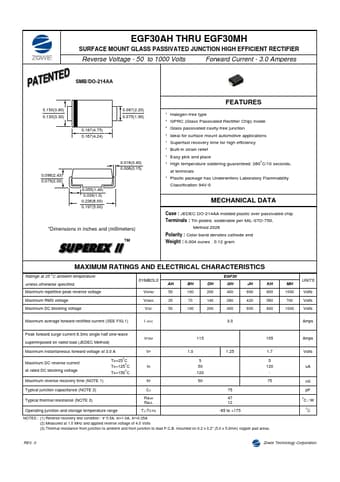

Datasheet preview – EGF30DH

Datasheet Details

Part number EGF30DH
Manufacturer Zowie
File Size 54.38 KB
Description SURFACE MOUNT GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet download datasheet EGF30DH Datasheet
