EGP10D, EGP10A SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

EGP10D Description

EGP10A THRU EGP10M SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere PPA.

EGP10D Features

* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction
* Superfast recovery time for high efficiency
* Low forward voltage , high current capability
* Low leakage current
* High surge current capability
* High temperature soldering guarant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EGP10D, EGP10A. Please refer to the document for exact specifications by model.

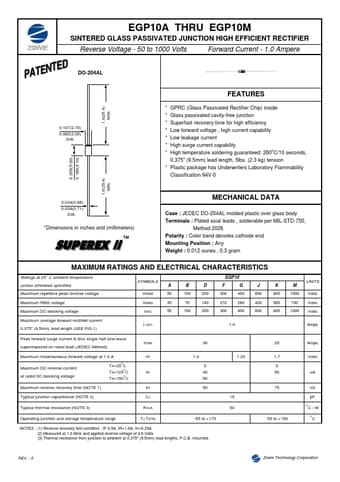

datasheet Preview Page 2

Datasheet Details

Part number
EGP10D, EGP10A
Manufacturer
Zowie
File Size
56.36 KB
Datasheet
EGP10A-Zowie.pdf
Description
SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Note
This datasheet PDF includes multiple part numbers: EGP10D, EGP10A.
Please refer to the document for exact specifications by model.
