EGP10DH - SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER

Product Overview

Zowie

Part number	EGP10DH
Manufacturer	Zowie
File Size	52.60 KB
Description	SINTERED GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIER
Datasheet	EGP10DH Datasheet
Note	This datasheet PDF includes multiple part numbers: EGP10DH, EGP10AH. Please refer to the document for exact specifications by model.

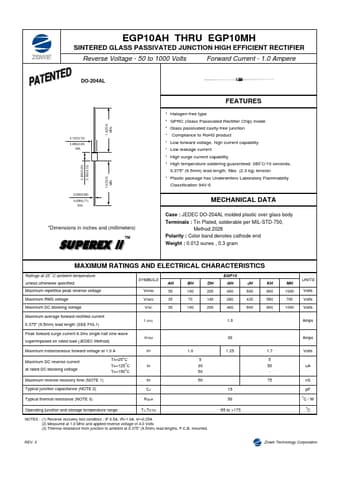

Additional preview pages of the EGP10DH datasheet.

Halogen-free type.
GPRC (Glass Passivated Rectifier Chip) inside.
Glass passivated cavity-free junction.
Compliance to RoHS product.
Low forward voltage, high current capability.
Low leakage current.
High surge current capability.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
