RGF30A SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

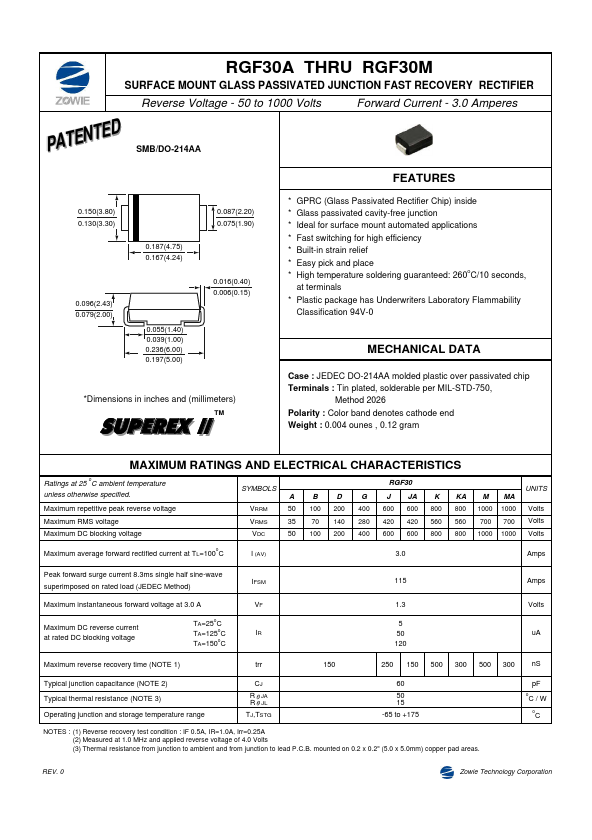

📥 Download Datasheet Datasheet Preview Page 1

Description

RGF30A THRU RGF30M SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 3.0 Amperes.

📥 Download Datasheet

Preview of RGF30A PDF

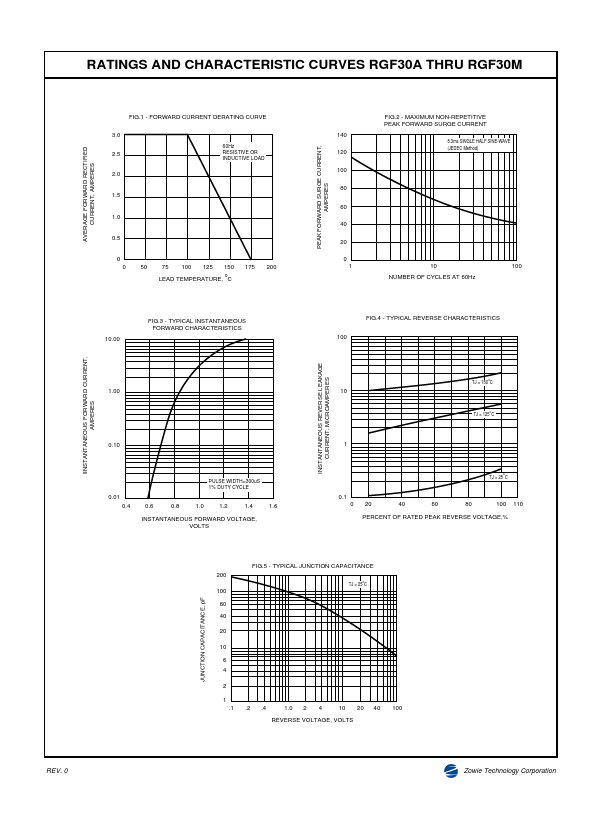

datasheet Preview Page 2

Datasheet Specifications

Part number
RGF30A
Manufacturer
Zowie
File Size
81.27 KB
Datasheet
RGF30A-Zowie.pdf
Description
SURFACE MOUNT GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

Features

* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction

Applications

* Fast switching for high efficiency
* Built-in strain relief
* Easy pick and place
* High temperature soldering guaranteed: 260oC/10 seconds, at terminals
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0 MECHANICAL DATA Case : JEDEC DO-214AA molded
