SSCD206H, SSCD202H Schottky Barrier Diode

SSCD206H Description

ZOWIE Schottky Barrier Diode SSCD202H THRU SSCD210H .

SSCD206H Features

* Halogen-free type
* Lead free product , compliance to RoHs
* Lead less chip form , no lead damage
* Lead-free solder joint , no wire bond & lead frame
* Low power loss , High efficiency
* High current capability , low VF
* Plastic package has Underwriters Laboratory Fla

SSCD206H Applications

* Portable equipment battery applications
* General rectification
* DC / DC Converter
* Telecommunication 0.70 ± 0.2 0.70 ± 0.2 0.2 0.1 0.96-+ Equivalent : SOD-123 MECHANICAL DATA Case : Packed with FRP substrate and epoxy underfilled Terminals : Pure Tin plated (Lead-Free), so

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SSCD206H, SSCD202H. Please refer to the document for exact specifications by model.

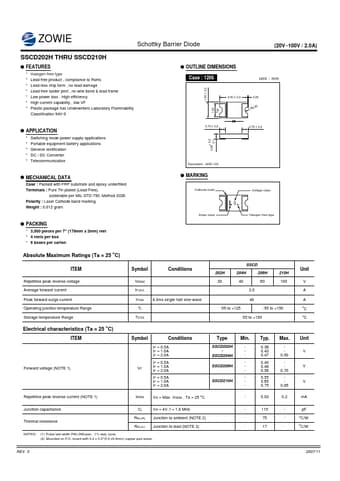

datasheet Preview Page 2

Datasheet Details

Part number
SSCD206H, SSCD202H
Manufacturer
Zowie
File Size
60.88 KB
Datasheet
SSCD202H-Zowie.pdf
Description
Schottky Barrier Diode
Note
This datasheet PDF includes multiple part numbers: SSCD206H, SSCD202H.
Please refer to the document for exact specifications by model.
