ANI4N60B

N-Chanel Power MOSFET

ANI4N60B Features

* Low Qg Low Rdson RoHS compliant 1 Gate 2 Drain 3 Source Table 1. Device summary Part numbers ANA4N60B ANP4N60B ANB4N60B AND4N60B ANI4N60B ANU4N60B Marking A4N60B P4N60B B4N60B D4N60B I4N60B U4N60B Package TO-220FP TO-220 D²PAK DPAK I PAK IPAK Value TO-220FP TO-220 D²PAK I2PAK DPAK IPAK 2 Packaging

ANI4N60B Datasheet (1.02 MB)

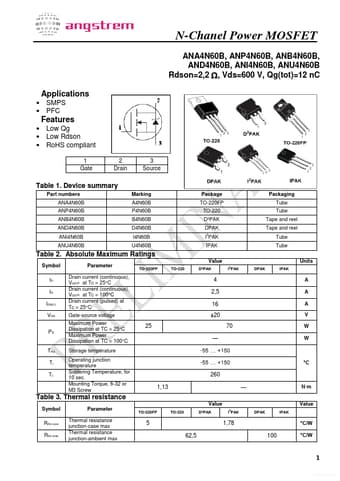

Preview of ANI4N60B PDF

Datasheet Details

Part number:

ANI4N60B

Manufacturer:

angstrem

File Size:

1.02 MB

Description:

N-chanel power mosfet.
N-Chanel Power MOSFET ANA4N60B, ANP4N60B, ANB4N60B, AND4N60B, ANI4N60B, ANU4N60B Rdson=2,2 , Vds=600 V, Qg(tot)=12 nC Applications
*
*
* .
