apm1010

BT4.0 Single Mode Module

apm1010 Features

* y Bluetooth® v4.0 specification y 7dBm Bluetooth low energy maximum transmit output power y -92dBm Bluetooth low energy receive y Support for Bluetooth v4.0 specification host stack including ATT, GATT, SMP, L2CAP, GAP y

apm1010 General Description

apm1010 module is a full integrated single-mode Bluetooth low energy module for the Bluetooth Smart market. It integrated CSR1010, RF matching circuit, crystal and EEPROM into a surface mount module with a compact size of 15 × 15 × 2.45 mm. It supports all Bluetooth low Energy profiles. A customized.

apm1010 Datasheet (288.88 KB)

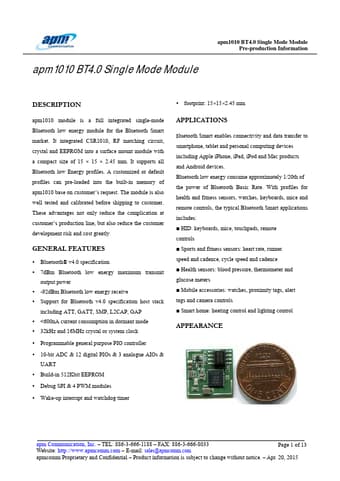

Preview of apm1010 PDF

Datasheet Details

Part number:

apm1010

Manufacturer:

apm

File Size:

288.88 KB

Description:

Bt4.0 single mode module.
