SCD120S Datasheet, Diode, ark

SCD120S Features

  • Diode
  • Silicon Epitaxial Planar Diode
  • Highly Uniform VBR (±7%) guaranteed by Specification
  • Highly Uniform Current Distribution
  • RoHS Compliant & Halogen

PDF File Details

Part number:

SCD120S

Manufacturer:

ark

File Size:

417.61kb

Download:

📄 Datasheet

Description:

Spike clamped diode. This novel diode, manufactured by ARK proprietary silicon process and structure, is featured with both highly uniform breakdown volta

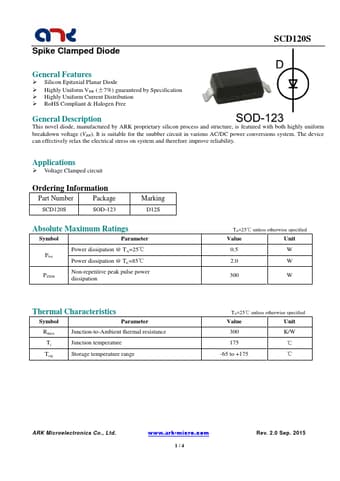

Datasheet Preview: SCD120S 📥 Download PDF (417.61kb)
Page 2 of SCD120S Page 3 of SCD120S

SCD120S Application

  • Applications
  • Voltage Clamped circuit Ordering Information Part Number Package SCD120S SOD-123 Marking D12S Absolute Maximum Ratings
