AS1152

Quad LVDS Driver

austriamicrosystems AG

AS1152 Features

* ! ! Flow-Through Pinout Guaranteed 500Mbps Data Rate (paired with AS1150) 350ps Pulse Skew (Max) Conforms to ANSI TIA/EIA-644 LVDS Standards Single +3.3V Supply Operating Temperature Range: -40 to +85°C 16-Pin TSSOP Package ! ! ! ! ! 3 Applications Digital Copiers, Laser Printers, Cellular Phone

AS1152 General Description

The AS1152 is a Quad Flow-Through LVDS (Low-Voltage Differential Signaling) Line Driver which accepts and converts LVTTL/LVCMOS input levels into LVDS output signals. The device is perfect for low-power lownoise applications requiring high signaling rates and reduced EMI emissions. The device is gua.

AS1152 Datasheet (176.62 KB)

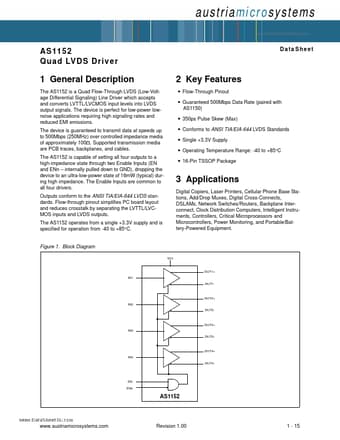

AS1152 Datasheet Preview — Preview of AS1152 PDF

Datasheet Details

Part number:

AS1152

Manufacturer:

austriamicrosystems AG

File Size:

176.62 KB

Description:

Quad lvds driver.
