AS1544, AS1543, 8/4-Channel 1 Msps 12-Bit ADC with Sequencer

www.DataSheet4U.com AS1543/44 8 / 4 - C h a n n e l , 1 M s ps , 1 2 - B i t A D C w i t h S e q u e n c e r D a ta S he e t 1 General .
The AS1543/44 is a 12-bit high-speed, low-power, 8/4channel, successive-approximation ADC that operates from a single 2.

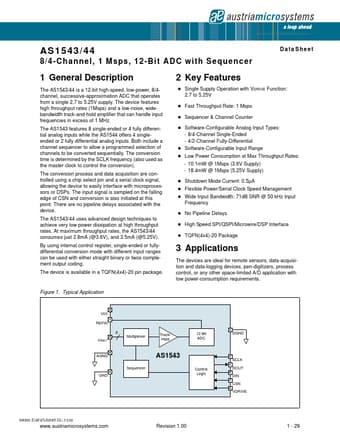

datasheet Preview Page 1 from Datasheet4u.com

AS1543_austriamicrosystemsAG.pdf

AS1544 Datasheet Preview — This datasheet PDF includes multiple part numbers: AS1544, AS1543. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AS1544, AS1543

Manufacturer:

austriamicrosystems AG

File Size:

1.05 MB

Description:

8/4-Channel 1 Msps 12-Bit ADC with Sequencer

Note:

This datasheet PDF includes multiple part numbers: AS1544, AS1543.
Please refer to the document for exact specifications by model.

Features

* high throughput rates (1Msps) and a low-noise, widebandwidth track-and-hold amplifier that can handle input frequencies in excess of 1 MHz. The AS1543 features 8 single-ended or 4 fully differential analog inputs while the AS1544 offers 4 singleended or 2 fully differential analog inputs. Both inclu

Applications

* The devices are ideal for remote sensors, data-acquisition and data-logging devices, pen-digitizers, process control, or any other space-limited A/D application with low power-consumption requirements. Figure 1. Typical Application VDD REFIN 8 Multiplexer VIN0:7 Track/ Hold 12-Bit ADC DGND AGND S
