AS3902

ISM 433 MHz ASK Transmitter

AS3902 Features

* Supports the European 433 MHz ISM band.

* No frequency pulling by (antenna) load variation due to PLL synthesizer.

* Designed to be conform to EN 300 220-1 requirements.

* ASK data rate range from 0 to 32 kbit/s.

* Supports clock and reset signals for the ex

AS3902 General Description

The AS3902 is a single channel low power 433 MHz ASK transmitter. It uses a fully integrated PLL stabilized RF-oscillator which avoids frequency pulling by approaching the antenna with objects as it occurs at SAW resonator based transmitters. ASK modulation is performed by switching the transmitter .

AS3902 Datasheet (348.59 KB)

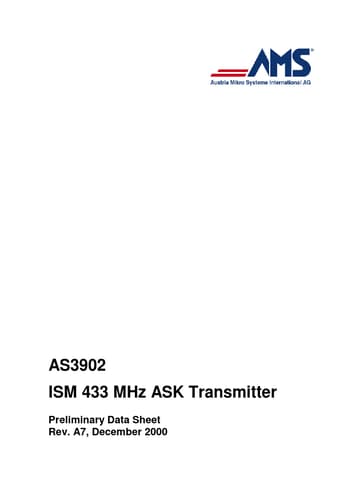

Preview of AS3902 PDF

Datasheet Details

Part number:

AS3902

Manufacturer:

austriamicrosystems AG

File Size:

348.59 KB

Description:

Ism 433 mhz ask transmitter.
AS3902 ISM 433 MHz ASK Transmitter Preliminary Data Sheet Rev. A7, December 2000 ISM 433 MHz ASK Transmitter

* Preliminary Data Sheet AS3902 .
