OR62 Datasheet - austriamicrosystems AG

OR62 OR62 is a 6-input OR gate with 2x drive strength

R Austria Mikro Systeme International OR62 CUB 0.6 µm CMOS OR62 is a 6-input OR gate with 2x drive strength. Truth Table A B C D E F Q Capacitance Ci (pF) L H X X X L X H X X L X X H X L X X X H L X X X X L X X X X L H H H H X X X X X X X X H X X H H H A B C D E F OR62 Q A B C D E F 0.046 0.043 0.046 0.046 0.043 0.048 Area 1.08 mils 2 Power 4.45 µW / MHz Delay [ns] = tpd.. = f(SL, L) Output Slope [ns] = op_sl.. = f(L) AC Characteristics : Tj = 25°C with SL = Input Slo.

OR62 Datasheet (13.49 KB)

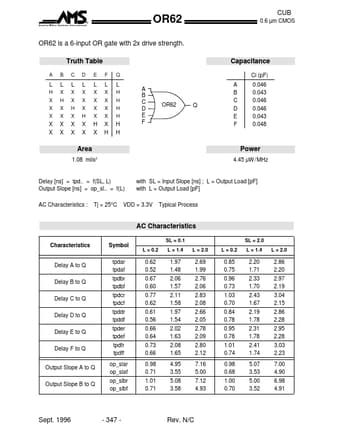

Preview of OR62 PDF

Datasheet Details

Part number:

OR62

Manufacturer:

austriamicrosystems AG

File Size:

13.49 KB

Description:

Or62 is a 6-input or gate with 2x drive strength.
