OB33 - 4.0 mA output pad cell

austriamicrosystems

Datasheet Details

Part number	OB33
Manufacturer	austriamicrosystems
File Size	28.35 KB
Description	4.0 mA output pad cell
Datasheet	OB33 Datasheet
Additional preview pages of the OB33 datasheet.

📁 Similar Datasheet

OB3302 - Cost Effective CCFL Controller (GreenEngine)
OB3306 - High Integrated LCD Monitor Backlight Inverter Controller (GreenEngine)
OB3309 - Highly Integrated U Type CCFL Backlight Controller (On-Bright)
OB3316 - High Performance CCFL Controller (On-Bright)
OB3328 - High Performance CCFL Controller (On-Bright)
OB3328N - High Performance CCFL Controller (On-Bright)
OB3330 - High Performance LED Lighting Driver (On-Bright)
OB3330CP - High Performance LED Lighting Driver (On-Bright)
OB3330CPA - High Performance LED Lighting Driver (On-Bright)
OB3330X - High PF PSR LED Controller (On-Bright)

Other Datasheets by austriamicrosystems

Full PDF Text Transcription

Click to expand full text

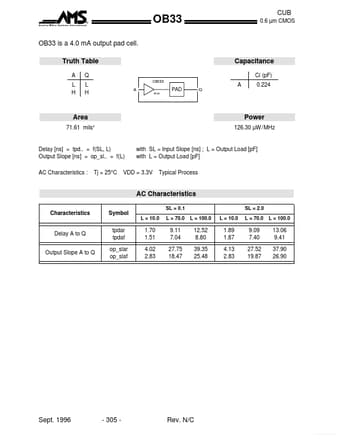

R Austria Mikro Systeme International OB33 CUB 0.6 µm CMOS OB33 is a 4.0 mA output pad cell. Truth Table A L H Q L H OB33 Capacitance Ci (pF) A 4mA PAD Q A 0.224 Area 71.61 mils2 Power 126.30 µW / MHz Delay [ns] = tpd.. = f(SL, L) Output Slope [ns] = op_sl.. = f(L) AC Characteristics : Tj = 25°C with SL = Input Slope [ns] ; L = Output Load [pF] with L = Output Load [pF] Typical Process VDD = 3.3V AC Characteristics Characteristics Symbol tpdar tpdaf op_slar op_slaf SL = 0.1 L = 10.0 L = 70.0 L = 100.0 L = 10.0 SL = 2.0 L = 70.0 L = 100.0 Delay A to Q Output Slope A to Q 1.70 1.51 4.02 2.83 9.11 7.04 27.75 18.47 12.52 8.80 39.35 25.48 1.89 1.87 4.13 2.83 9.09 7.40 27.52 19.87 13.06 9.41 37.90 26.90 Sept. 1996 - 305 - Rev. N/C Free Datasheet http://www.datasheet4u.
