RYK-2G49L Datasheet - azarco

RYK-2G49L CCTV IR Camera

RYK-2G49L CCTV IR Camera 1/3" CL IR Space Dome Camera » Sony Super HAD CCD sensor » Built-in Board Lens » Built-in 24 pieces IR-LED » Effective range up to 20 M Specifications Image Device Picture elements resolution Minimum Illumination S/N Ratio Electronic Shutter Gamma lens furnished White Balance Gain control www.DataSheet4U.net Values 1/3" Color Sony Super HAD NTSC:510x492, PAL:500x582 380 TVL 0.2 Lux / F 2.0 (Day), 0 Lux (IR on) More than 48dB NTSC:1/60~1/100,000, PAL:1/50~1/110,000 0.4.

RYK-2G49L Datasheet (34.62 KB)

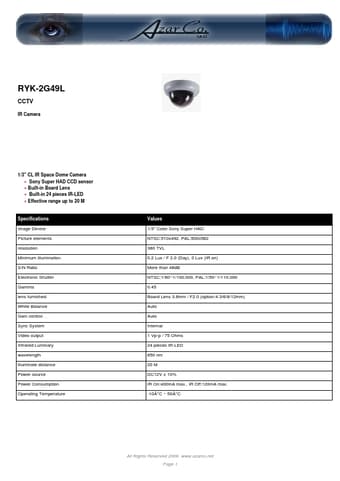

Preview of RYK-2G49L PDF

Datasheet Details

Part number:

RYK-2G49L

Manufacturer:

azarco

File Size:

34.62 KB

Description:

Cctv ir camera.
