0ZRS1000FF1A - Radial Leaded PTC

This page provides the datasheet information for the 0ZRS1000FF1A, a member of the 0ZRS0050FF1E Radial Leaded PTC family.

Datasheet Summary

Features

  • - Very Low resistance, Very High hold current, Solid state, Radial leaded product ideal for up to 32V and Operating temperatures up to 125° C. - AEC-Q Compliant - Meets Bel automotive qualification.
  • - Largely based on internal AEC-Q test plan Operating (Hold Current) Range 500mA - 10A Maximum Voltage 32V Temperature Range -40° C to 125° C Agency Approval TUV (Std. EN/IEC 60738-1-1 and EN/IEC 60730-1, Cert. R50102187) UL Recognized Component (Std. UL1434, File E305051) Electrical Chara.

📥 Download Datasheet

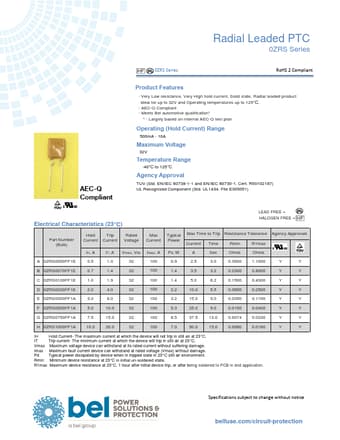

Datasheet preview – 0ZRS1000FF1A

Datasheet Details

Part number 0ZRS1000FF1A
Manufacturer bel
File Size 816.88 KB
Description Radial Leaded PTC
Datasheet download datasheet 0ZRS1000FF1A Datasheet
Additional preview pages of the 0ZRS1000FF1A datasheet.

📁 Similar Datasheet

Other Datasheets by bel

Full PDF Text Transcription

Click to expand full text
Radial Leaded PTC 0ZRS Series 0ZRS Series RoHS 2 Compliant AEC-Q Compliant Product Features - Very Low resistance, Very High hold current, Solid state, Radial leaded product ideal for up to 32V and Operating temperatures up to 125° C. - AEC-Q Compliant - Meets Bel automotive qualification* * - Largely based on internal AEC-Q test plan Operating (Hold Current) Range 500mA - 10A Maximum Voltage 32V Temperature Range -40° C to 125° C Agency Approval TUV (Std. EN/IEC 60738-1-1 and EN/IEC 60730-1, Cert. R50102187) UL Recognized Component (Std.
