CM8600A Datasheet - ccmic

3 Watt Audio Power Amplifier

CM8600A Features

* a low-power consumption shutdown mode. To facilitate this, Shutdown may be enabled by either logic high or low depending on mode selection. Driving the shutdown mode pin either high or low enables the shutdown pin to be driven in a likewise manner to enable shutdown. The CM8600 contains advanced pop

CM8600A General Description

The CM8600 is an audio power amplifier primarily designed for demanding applications in mobile phones and other portable communication device applications. It is capable of delivering 1.25 watts of continuous average power to an 8 BTL load and 2 watts of continuous average power (LD and MH only) to .

CM8600A Datasheet (1.07 MB)

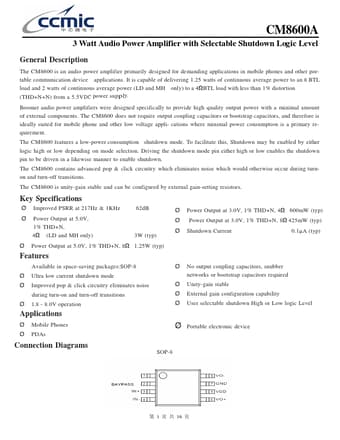

CM8600A Datasheet Preview — Preview of CM8600A PDF

Datasheet Details

Part number:

CM8600A

Manufacturer:

ccmic

File Size:

1.07 MB

Description:

3 watt audio power amplifier.
