SHT842300, SHT842xxx_celduc, Three phase Solid State Relay

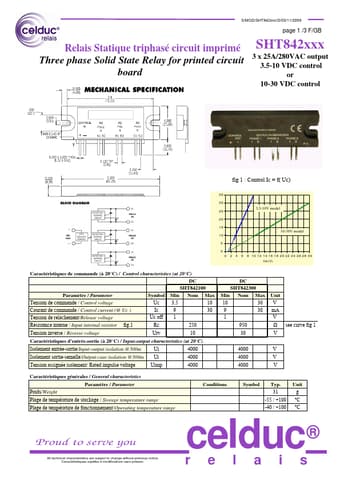

S/MOD/SHT842xxx/D/03/11/2009 page 1 /3 F/GB Relais Statique triphasé circuit imprimé SHT842xxx Three phase Solid State Relay for printed circuit 3 x 25A/280VAC output 3.5-10 VDC control board or 10-30 VDC control fig 1 : Control Ic = f( Uc) 35 30 3,5-10V model 25 20 15 10-30V model 10 5 0 0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 Ue (V) Caractéristiques de commande (à 20°C) / Control characteristics (at 20°C) DC DC SHT842100 SHT842300 Paramètre / Parameter Tension de commande / Co
