RT9101 Rotational Transducer / Voltage Divider

RT9101 0 90° to 0 50 Turns Voltage Divider Industrial Grade Rotational Position Sensor Absolute Rotary Position up to 50 turns Aluminum or Stainless Steel Enclosure Options IP68 / NEMA 6 GENERAL Full Stroke Range Options 0-0.25 to 0-50 turns Output Signal Options voltage divider (potentiometer) Accuracy see ordering information Repeatability ± 0.02% full stroke Resolution essentially infinite Enclosure Material Options powder-painted aluminum or stainl.

RT9101 Datasheet (437.65 KB)

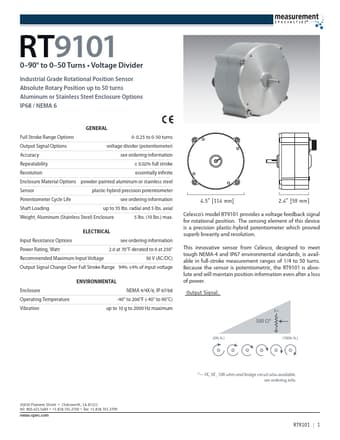

Preview of RT9101 PDF
RT9101 Datasheet Preview Page 2 RT9101 Datasheet Preview Page 3

Datasheet Details

Part number:

RT9101

Manufacturer:

celesco

File Size:

437.65 KB

Description:

Rotational transducer / voltage divider.
