KP2210L - 6PIN PHOTOTRANSISTOR PHOTOCOUPLER

Product Overview

cosmo

Datasheet Details

Part number	KP2210L
Manufacturer	cosmo
File Size	251.24 KB
Description	6PIN PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	KP2210L Datasheet

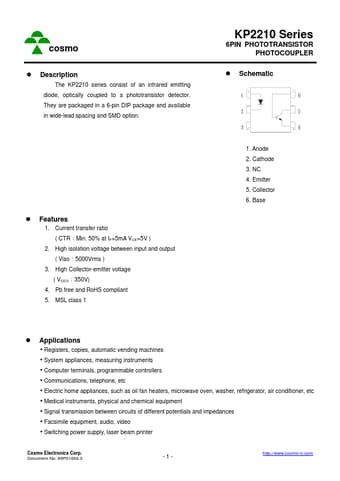

Additional preview pages of the KP2210L datasheet.

Product details

Description

z Schematic The KP2210 series consist of an infrared emitting 1 6 diode, optically coupled to a phototransistor detector.They are packaged in a 6-pin DIP package and available 2 5 in wide-lead spacing and SMD option.3 4 z

Features

1. Current transfer ratio ( CTR：Min. 50% at IF=5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. High Collector-emitter voltage ( VCEO：350V) 4. Pb free and RoHS compliant 5. MSL class 1 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6. Base z.
