2APW Voltage Translator

This device is an 8-bit non-inverting level translator that uses two separate configurable power-supply rails. The A port tracks the VCCA pin supply voltage. The VCCA pin accepts any supply voltage between 1.4 V and 3.6 V. The B port tracks the VCCB pin supply voltage. The VCCB pin accepts any suppl.

2APW Features

* 1 No direction-control signal needed

* Maximum data rates

* 110 Mbps (push pull)

* 1.2 Mbps (open drain)

* 1.4 V to 3.6 V on A port and 1.65 V to 5.5 V on B port (VCCA ≤ VCCB)

* No power-supply sequencing required

* either VCCA or VCCB can be

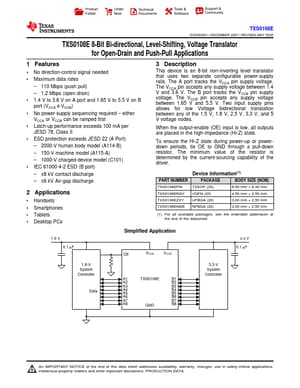

2APW-etcTI.pdf
