54HC245 - Octal Bus Transceivers

Texas Instruments

📥 Download Datasheet

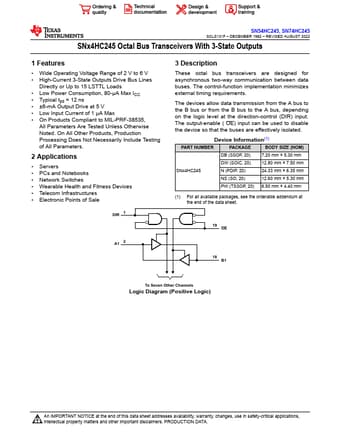

54HC245 Datasheet Preview — Preview of 54HC245 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	54HC245
Manufacturer	Texas Instruments ↗
File Size	2.79 MB
Description	Octal Bus Transceivers
Datasheet	54HC245-etcTI.pdf

54HC245 Product details

Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses.

Features

Wide Operating Voltage Range of 2 V to 6 V.
High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads.
Low Power Consumption, 80-μA Max ICC.
Typical tpd = 12 ns.
±6-mA Output Drive at 5 V.
Low Input Current of 1 μA Max.
On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters. 2 App.
