54HC27 Datasheet, Gates, Texas Instruments

54HC27 Features

  • Gates
  • Buffered inputs
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range: -40°C to +85°C
  • Supports fanout up to 10 LSTTL loads

PDF File Details

Part number:

54HC27

Manufacturer:

Texas Instruments ↗

File Size:

1.76MB

Download:

📄 Datasheet

Description:

Triple 3-input nor gates. This device contains three independent 3-input NOR gates. Each gate performs the Boolean function Y = A + B + C in positive logic.

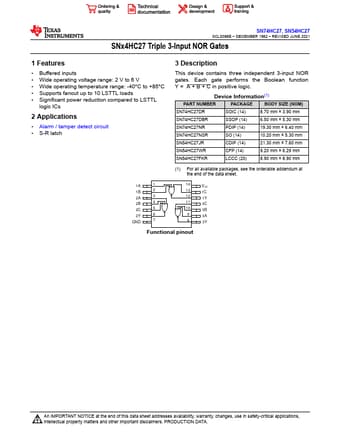

Datasheet Preview: 54HC27 📥 Download PDF (1.76MB)
Page 2 of 54HC27 Page 3 of 54HC27

54HC27 Application

  • Applications
  • Alarm / tamper detect circuit
  • S-R latch 3 Description This device contains three independent 3-input NOR gates. E
