54HC273 Datasheet, Flip-flops, Texas Instruments

54HC273 Features

  • Flip-flops
  • Wide operating voltage range of 2 V to 6 V
  • Outputs can drive up to 10 LSTTL loads
  • Low power consumption, 80-µA maximum ICC
  • Typical tpd = 12 ns

PDF File Details

Part number:

54HC273

Manufacturer:

Texas Instruments ↗

File Size:

2.10MB

Download:

📄 Datasheet

Description:

Octal d-type flip-flops. The SNx4HC273 devices are positive-edge-triggered D-type flip-flops with a direct active low clear ( CLR) input. Information at the

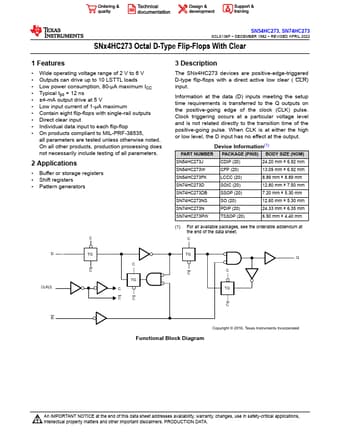

Datasheet Preview: 54HC273 📥 Download PDF (2.10MB)
Page 2 of 54HC273 Page 3 of 54HC273

54HC273 Application

  • Applications
  • Buffer or storage registers
  • Shift registers
  • Pattern generators C 3 Description The SNx4HC273 devices ar
