54HCT240 Datasheet, Drivers, Texas Instruments

54HCT240 Features

  • Drivers
  • HC/HCT240 Inverting
  • HC/HCT241 Non-inverting
  • HC/HCT244 Non-inverting
  • Typical propagation delay = 8ns at VCC = 5 V, CL = 15 pF, TA = 25℃ for HC240

PDF File Details

Part number:

54HCT240

Manufacturer:

Texas Instruments ↗

File Size:

1.56MB

Download:

📄 Datasheet

Description:

High-speed cmos logic octal buffer/line drivers. The ’HC240 and ’HCT240 are inverting three-state buffers having two active-low output enables. The CD74HC241, ’HCT241, ’HC244 and ’H

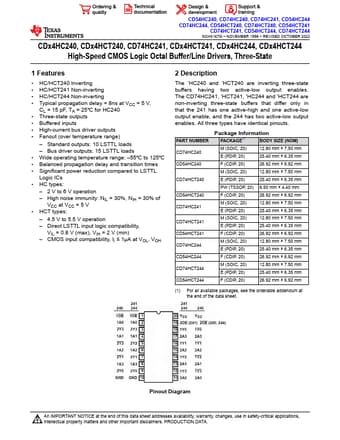

Datasheet Preview: 54HCT240 📥 Download PDF (1.56MB)
Page 2 of 54HCT240 Page 3 of 54HCT240

54HCT240 Application

  • Applications intellectual property matters and other important disclaimers. PRODUCTION DATA. CD54HC240, CD74HC240, CD74HC241, CD54HC244 CD74HC244,
