54LS47 - BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS

📥 Download Datasheet

Datasheet preview – 54LS47

Datasheet Details

Part number 54LS47
Manufacturer Texas Instruments
File Size 1.73 MB
Description BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS
Datasheet download datasheet 54LS47 Datasheet
Additional preview pages of the 54LS47 datasheet.

📁 Similar Datasheet

  • 54LS47 - BCD TO 7-SEGMENT DECODER/DRIVER (Motorola)
  • 54LS42 - BCD/Decimal Decoders (National Semiconductor)
  • 54LS49 - BCD to 7-Segment Decoder (National Semiconductor)
  • 54LS00 - QUAD 2-INPUT NAND GATE (ETC)
  • 54LS00 - Quad 2-Input NAND Gates (National Semiconductor)
  • 54LS02 - Quad 2-Input NOR Gates (National Semiconductor)
  • 54LS03 - Quad 2-Input NAND Gates (National Semiconductor)
  • 54LS04 - HEX INVERTER (Motorola)
  • 54LS04 - Hex Inverting Gates (National Semiconductor)
  • 54LS05 - HEX INVERTERS (National Semiconductor)
Other Datasheets by Texas Instruments
  • 54LS06 - Hex Inverter Buffers/Drivers
  • 54LS08 - Quadruple 2-Input Positive-AND Gates
  • 54LS109A - Dual J-K Positive-Edge-Triggered Flip-Flops
  • 54LS122 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
  • 54LS123 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS
  • 54LS125A - QUADRUPLE BUS BUFFERS
  • 54LS126A - QUADRUPLE BUS BUFFERS
  • 54LS14 - Hex Schmitt-Trigger Inverters

Full PDF Text Transcription

Click to expand full text

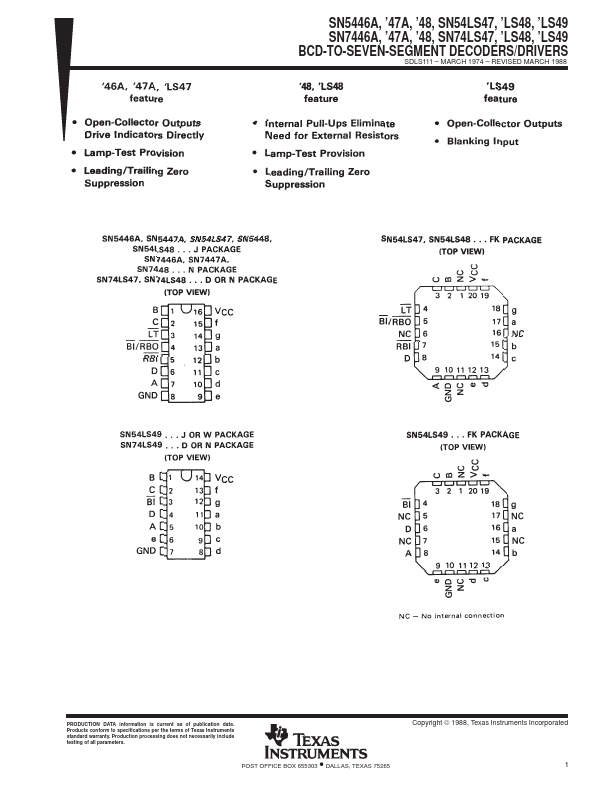

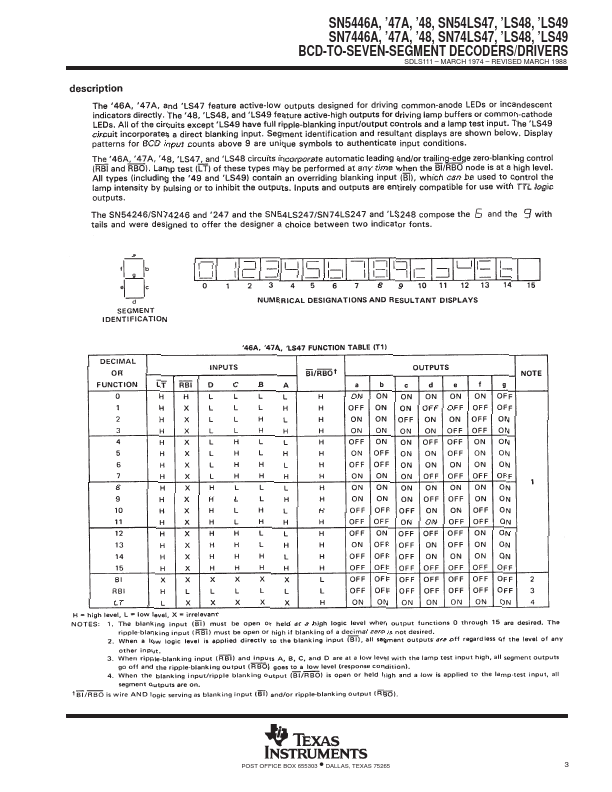

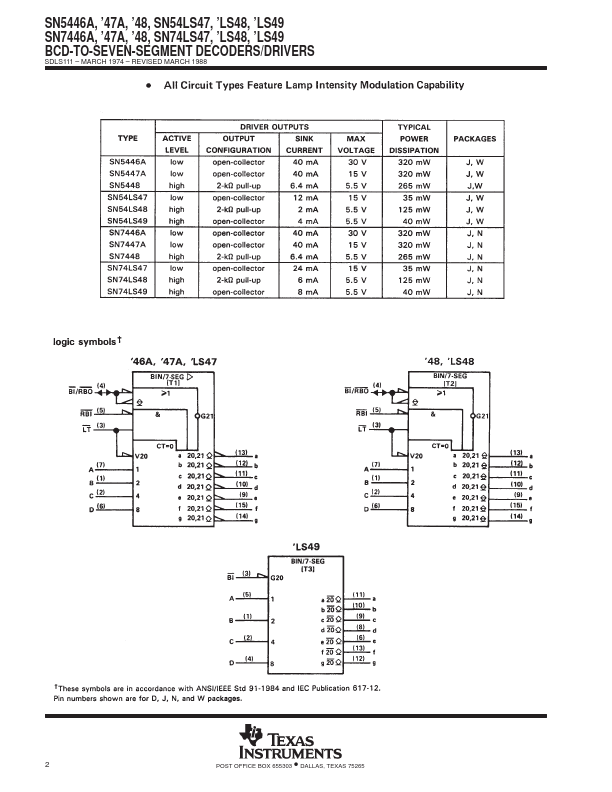

SN5446A, ’47A, ’48, SN54LS47, ’LS48, ’LS49 SN7446A, ’47A, ’48, SN74LS47, ’LS48, ’LS49 BCD-TO-SEVEN-SEGMENT DECODERS/DRIVERS SDLS111 – MARCH 1974 – REVISED MARCH 1988 PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
