74AC11004 - HEX INVERTER

Datasheet Summary

Description

NC

This device contains six independent inverters.

It performs the Boolean function Y = A.

40°C to 85°C.

📥 Download Datasheet

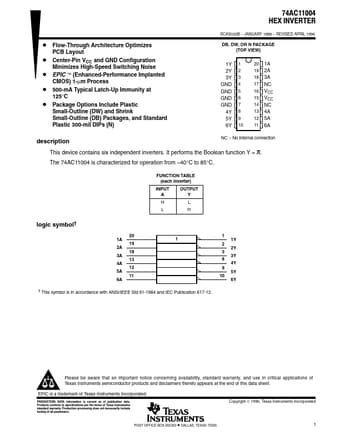

Datasheet preview – 74AC11004

Datasheet Details

Part number 74AC11004
Manufacturer Texas Instruments
File Size 1.01 MB
Description HEX INVERTER
Datasheet download datasheet 74AC11004 Datasheet
Additional preview pages of the 74AC11004 datasheet.

📁 Similar Datasheet

  • 74AC11 - TRIPLE 3-INPUT AND GATE (STMicroelectronics)
  • 74AC11 - Triple 3-Input AND Gate (Fairchild Semiconductor)
  • 74AC11132 - QUAD 2 INPUT NAND SCHMITT TRIGGER (Philips)
  • 74AC11153 - DUAL 4 INPUT MULTIPLEXER (Philips)
  • 74AC11157 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11158 - QUAD 2 INPUT MULTIPLEXER (Philips)
  • 74AC11160 - SYNCHRONOUS BCD DECADE COUNTER (Philips)
  • 74AC11181 - 4-BIT ARITHMETIC LOGIC UNIT (Philips)
  • 74AC11190 - ASYNCHRONOUS PRESETTABLE SYNCHRONOUS DECADE UP/DOWN COUNTER (Philips)
  • 74AC11239 - DUAL 2 TO 4 LINE DECODER/DEMULTIPLEXER (NXP)
Other Datasheets by Texas Instruments
  • 74AC11000 - QUADRUPLE 2-INPUT POSITIVE-NAND GATE
  • 74AC11002 - QUADRUPLE 2-INPUT POSITIVE-NOR GATES
  • 74AC11008 - QUADRUPLE 2-INPUT POSITIVE-AND GATE
  • 74AC11010 - TRIPLE 3-INPUT POSITIVE-NAND GATES
  • 74AC11011 - TRIPLE 3-INPUT POSITIVE-AND GATES
  • 74AC11013 - DUAL 4-INPUT POSITIVE-NAND SCHMITT TRIGGER
  • 74AC11021 - Dual 4-Input Positive-AND Gates
  • 74AC11027 - TRIPLE 3-INPUT POSITIVE-NOR GATES

Full PDF Text Transcription

Click to expand full text
74AC11004 HEX INVERTER D Flow-Through Architecture Optimizes PCB Layout D Center-Pin VCC and GND Configuration Minimizes High-Speed Switching Noise D EPIC ™ (Enhanced-Performance Implanted CMOS) 1-μm Process D 500-mA Typical Latch-Up Immunity at 125°C D Package Options Include Plastic Small-Outline (DW) and Shrink Small-Outline (DB) Packages, and Standard Plastic 300-mil DIPs (N) SCAS033B − JANUARY 1988 − REVISED APRIL 1996 DB, DW, OR N PACKAGE (TOP VIEW) 1Y 2Y 3Y GND GND GND GND 4Y 5Y 6Y 1 2 3 4 5 6 7 8 9 10 20 1A 19 2A 18 3A 17 NC 16 VCC 15 VCC 14 NC 13 4A 12 5A 11 6A description NC − No internal connection This device contains six independent inverters. It performs the Boolean function Y = A. The 74AC11004 is characterized for operation from −40°C to 85°C.
