74F30

8-INPUT POSITIVE-NAND GATES

74F30 General Description

These devices contain a single 8-input NAND gate. They perform the Boolean functions Y = A

* B

* C

* D

* E

* F

* G

* H or Y = A + B + C + D + E + F + G + H in positive logic. The SN54F30 is characterized for operation over the full military tem.

74F30 Datasheet (1.13 MB)

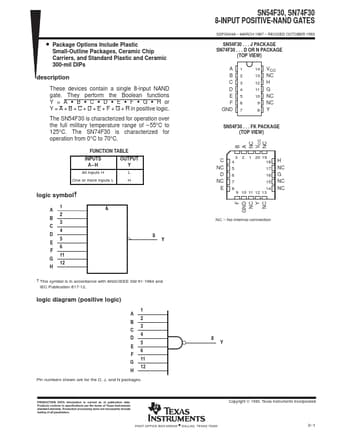

Preview of 74F30 PDF

Datasheet Details

Part number:

74F30

Manufacturer:

Texas Instruments ↗

File Size:

1.13 MB

Description:

8-input positive-nand gates.
