74HC251 - Data Selectors/Multiplexers

Description

The SNx4HC251 is a data selector/multiplexer containing full binary decoding to select 1of-8 data sources and

Features

  • 3-state version of ’HC151.
  • Wide operating voltage range of 2 V to 6 V.
  • High-current 3-state outputs interface directly with system bus or can drive up to 15 LSTTL loads.
  • Low power consumption, 80-μA max ICC.
  • Typical tpd = 9 ns.
  • ±6-mA output drive at 5 V.
  • Low input current of 1 μA max.
  • Perform parallel-to-serial conversion.
  • Complementary outputs provide true and inverted data 2.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74HC251 8-input multiplexer Philips
74HC251 8-input multiplexer nexperia
74HC251-Q100 8-input multiplexer nexperia
74HC251D 8-input multiplexer nexperia
74HC253 Dual 4-input multiplexer Philips

Other Datasheets by Texas Instruments

Part Number Description
74HC257 High-Speed CMOS Logic Quad 2-Input Multiplexer
74HC259 8-Bit Addressable Latches
74HC240 High-Speed CMOS Logic Octal Buffer/Line Drivers
74HC241 High-Speed CMOS Logic Octal Buffer/Line Drivers
74HC244 Octal Buffers and Line Drivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

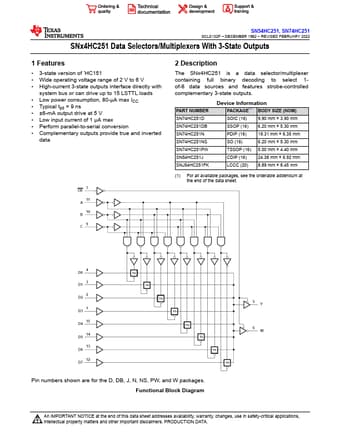

SN54HC251, SN74HC251 SCLS132F – DECEMBER 1982 – REVISED FEBRUARY 2022 SNx4HC251 Data Selectors/Multiplexers With 3-State Outputs 1 Features • 3-state version of ’HC151 • Wide operating voltage range of 2 V to 6 V • High-current 3-state outputs interface directly with system bus or can drive up to 15 LSTTL loads • Low power consumption, 80-μA max ICC • Typical tpd = 9 ns • ±6-mA output drive at 5 V • Low input current of 1 μA max • Perform parallel-to-serial conversion • Complementary outputs provide true and inverted data 2 Description The SNx4HC251 is a data selector/multiplexer containing full binary decoding to select 1of-8 data sources and features strobe-controlled complementary 3-state outputs.
