ADC084S021 - 4-Channel 50Ksps to 200Ksps 8-Bit A/D Converter

Datasheet Summary

Description

The ADC084S021 is a low-power, four-channel CMOS 8-bit analog-to-digital converter with a highspeed serial interface.

Unlike the conventional practice of specifying performance at a single sample rate only, the ADC084S021 is fully specified over a sample rate range of 50 ksps to 200 ksps.

Features

  • 1 Specified Over a Range of Sample Rates.
  • Four Input Channels.
  • Variable Power Management.
  • Single Power Supply With 2.7 V to 5.25 V Range.
  • DNL: ±0.04 LSB (Typical).
  • INL: ±0.04 LSB (Typical).
  • SNR: 49.6 dB (Typical).
  • Power Consumption:.
  • 3-V Supply: 1.6 mW (Typical).
  • 5-V Supply: 5.8 mW (Typical) 2.

📥 Download Datasheet

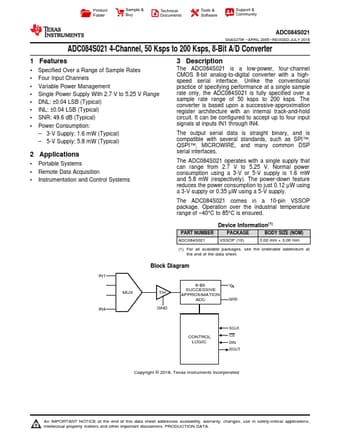

Datasheet preview – ADC084S021

Datasheet Details

Part number ADC084S021
Manufacturer Texas Instruments
File Size 1.69 MB
Description 4-Channel 50Ksps to 200Ksps 8-Bit A/D Converter
Datasheet download datasheet ADC084S021 Datasheet
Additional preview pages of the ADC084S021 datasheet.

📁 Similar Datasheet

  • ADC084S021 - 12-Bit A/D Converter (National Semiconductor)
  • ADC084S101 - 10-Bit A/D Converter (National Semiconductor)
  • ADC0841 - 8-Bit P Compatible A/D Converter (National Semiconductor)
  • ADC0844 - 8-Bit uP Compatible A/D Converters (National Semiconductor)
  • ADC0848 - 8-Bit uP Compatible A/D Converters (National Semiconductor)
  • ADC0800 - ADC0800 8-Bit A/D Converter (National Semiconductor)
  • ADC0801 - 8-Bit uP Compatible A/D Converters (National Semiconductor)
  • ADC0801S040 - 8-bit universal analog-to-digital converter (NXP Semiconductors)
  • ADC0802 - A/D Converters (Intersil Corporation)
  • ADC0802 - 8-Bit uP Compatible A/D Converters (National Semiconductor)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ADC084S021 SNAS279F – APRIL 2005 – REVISED JULY 2016 ADC084S021 4-Channel, 50 Ksps to 200 Ksps, 8-Bit A/D Converter 1 Features •1 Specified Over a Range of Sample Rates • Four Input Channels • Variable Power Management • Single Power Supply With 2.7 V to 5.25 V Range • DNL: ±0.04 LSB (Typical) • INL: ±0.04 LSB (Typical) • SNR: 49.6 dB (Typical) • Power Consumption: – 3-V Supply: 1.6 mW (Typical) – 5-V Supply: 5.8 mW (Typical) 2 Applications • Portable Systems • Remote Data Acquisition • Instrumentation and Control Systems 3 Description The ADC084S021 is a low-power, four-channel CMOS 8-bit analog-to-digital converter with a highspeed serial interface.
