ADS1232 Datasheet, Converter, Texas Instruments

ADS1232 Features

  • Converter
  • Complete front-end for bridge sensors
  • 23.5-bits effective resolution at gain = 1
  • 19.2-bits noise-free resolution at gain = 64
  • Low-noise PGA

PDF File Details

Part number:

ADS1232

Manufacturer:

Texas Instruments ↗

File Size:

1.97MB

Download:

📄 Datasheet

Description:

24-bit analog-to-digital converter. The ADS1232 and ADS1234 (ADS123x) are precision, 24-bit, analog-to-digital converters (ADCs). With a low-noise programmable gain amp

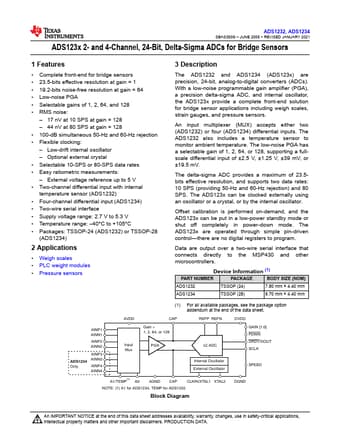

Datasheet Preview: ADS1232 📥 Download PDF (1.97MB)
Page 2 of ADS1232 Page 3 of ADS1232

ADS1232 Application

  • Applications
  • Weigh scales
  • PLC weight modules
  • Pressure sensors 3 Description The ADS1232 and ADS1234 (ADS123x) are pr
