AMC1200B - Fully-Differential Isolation Amplifier

This page provides the datasheet information for the AMC1200B, a member of the AMC1200 Fully-Differential Isolation Amplifier family.

Description

The AMC1200 and AMC1200B are precision isolation amplifiers with an output separated from the input circuitry by a silicon dioxide (SiO2) barrier that is highly resistant to magnetic interference.

Features

  • 1 ±250-mV Input Voltage Range Optimized for Shunt Resistors.
  • Very Low Nonlinearity: 0.075% Maximum at 5 V.
  • Low Offset Error: 1.5 mV Maximum.
  • Low Noise: 3.1 mVRMS Typical.
  • Low High-Side Supply Current: 8 mA Maximum at 5 V.
  • Input Bandwidth: 60 kHz Minimum.
  • Fixed Gain: 8 (0.5% accuracy).
  • High Common Mode Rejection Ratio: 108 dB.
  • 3.3-V Operation on Low-Side.
  • Certified Galvanic Isolation:.
  • UL1577 and VD.

📥 Download Datasheet

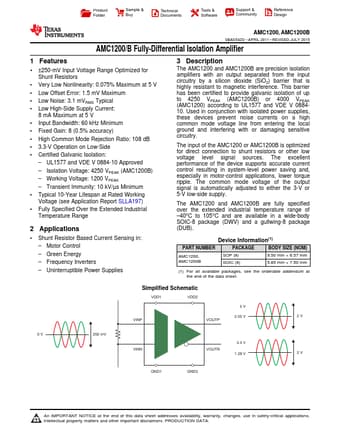

Datasheet preview – AMC1200B
