AWR2544

76-81GHz FMCW Radar SoC

Texas Instruments

AWR2544 Features

* FMCW transceiver

* Integrated PLL, transmitter, receiver, baseband and ADC

* 76 to 81GHz coverage with greater than 4GHz available bandwidth

* 4 receive and 4 transmit channels with Launch-on-Package (LOP) interface to antennas

* Per transmit phase shifter

AWR2544 General Description

The AWR2544 is a single-chip mmWave sensor composed of a FMCW transceiver. The device is capable of operation in the 76 to 81GHz (EHF) band, includes radar data processing elements, and a rich set of peripherals for in-vehicle networking. AWR2544 provides customers with an additional Launch on packa.

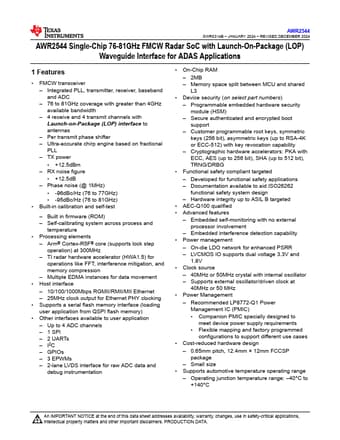

AWR2544 Datasheet (1.93 MB)

AWR2544 Datasheet Preview — Preview of AWR2544 PDF

Datasheet Details

Part number:

AWR2544

Manufacturer:

Texas Instruments ↗

File Size:

1.93 MB

Description:

76-81ghz fmcw radar soc.
AWR2544 SWRS314B

* JANUARY 2024

* REVISED DECEMBER 2024 AWR2544 Single-Chip 76-81GHz FMCW Radar SoC with Launch-On-Package (LOP) Waveg.
