BQ24003, BQ24001 - Single-Cell Li-Ion Charge Management

BQ24003 Description

www.ti.com bq24001 bq24002 bq24003 SLUS462E * SEPTEMBER 2000 * REVISED NOVEMBER 2004 SINGLEĆCELL LiĆION CHARGE MANAGEMENT IC FOR PDA.
The bq2400x series ICs are advanced Li-Ion linear charge management devices for highly integrated and space-limited applications.

BQ24003 Features

* D Highly Integrated Solution With FET Pass Transistor and Reverse-Blocking Schottky and Thermal Protection D Integrated Voltage and Current Regulation With Programmable Charge Current D High-Accuracy Voltage Regulation (±1%) D Ideal for Low-Dropout Linear Charger Designs for Single-Cell Li-Ion Packs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BQ24003, BQ24001. Please refer to the document for exact specifications by model.

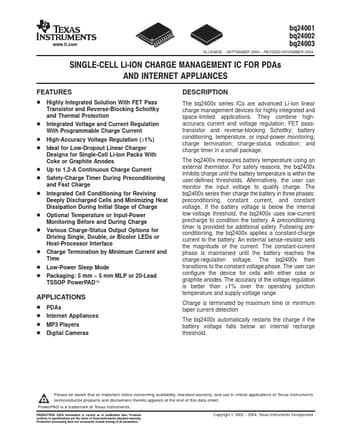

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BQ24003, BQ24001
Manufacturer
Texas Instruments ↗
File Size
1.02 MB
Datasheet
BQ24001-etcTI.pdf
Description
Single-Cell Li-Ion Charge Management
Note
This datasheet PDF includes multiple part numbers: BQ24003, BQ24001.
Please refer to the document for exact specifications by model.
