BQ24103A, BQ24100 Datasheet - Texas Instruments

BQ24103A Li-Ion/Li-Polymer Charger

The bqSWITCHER™ series are highly integrated Liion and Li-polymer switch-mode charge management devices targeted at a wide range of portable applications. The bqSWITCHER™ series offers integrated synchronous PWM controller and power FETs, high-accuracy current and voltage regulation, charge precondi.

BQ24103A Features

* 1 Ideal For Highly Efficient Charger Designs For Single-, Two-, or Three-Cell Li-Ion and Li-Polymer Battery Packs

* bq24105 Also for LiFePO4 Battery (see Using bq24105 to Charge the LiFePO4 Battery)

* Integrated Synchronous Fixed-Frequency PWM Controller Operating at 1.1 MHz

BQ24100-etcTI.pdf

This datasheet PDF includes multiple part numbers: BQ24103A, BQ24100. Please refer to the document for exact specifications by model.

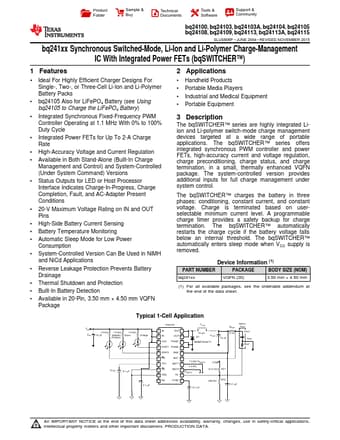

BQ24103A Datasheet Preview Page 2 BQ24103A Datasheet Preview Page 3

Datasheet Details

Part number:

BQ24103A, BQ24100

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

Li-ion/li-polymer charger.

Note:

This datasheet PDF includes multiple part numbers: BQ24103A, BQ24100.
Please refer to the document for exact specifications by model.
