BQ25713B

VDC Buck-Boost Battery Charge Controller

BQ25713B Features

* Pin-to-pin and software compatible to BQ25703A

* Charge 1s to 4s battery from wide range of input source

* 3.5-V to 24-V Input operating voltage

* Supports USB2.0, USB 3.0, USB 3.1 (Type C), and USB Power Delivery (USB-PD) input current settings

* Seamless t

BQ25713B General Description

This device is a synchronous NVDC buck-boost battery charge controller, offering a low component count, high efficiency solution for space constrained, 1s-4s battery charging applications. Device Information PART NUMBER PACKAGE(1) BODY SIZE (NOM) BQ25713, BQ25713B WQFN (32) 4.00 mm × 4.00 mm .

BQ25713B Datasheet (2.40 MB)

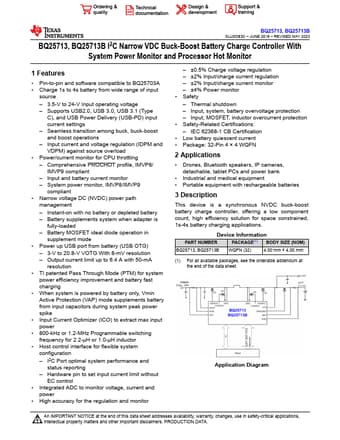

Preview of BQ25713B PDF

Datasheet Details

Part number:

BQ25713B

Manufacturer:

Texas Instruments ↗

File Size:

2.40 MB

Description:

Vdc buck-boost battery charge controller.
BQ25713, BQ25713B SLUSD83C

* JUNE 2018

* REVISED MAY 2023 BQ25713, BQ25713B I2C Narrow VDC Buck-Boost Battery Charge Controller With S.
