BQ51013, BQ51011 Datasheet - Texas Instruments

BQ51013 INTEGRATED WIRELESS POWER SUPPLY RECEIVER

The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications. The device provides the AC/DC power conversion while integrating the digital control required to comply with the Qi v1.0 communication protocol. Together with the bq500210 transmitter controller.

BQ51013 Features

* 1

* Integrated Wireless Power Receiver Solution with a 5V Regulated Supply

* 93% Overall Peak AC-DC Efficiency

* Full Synchronous Rectifier

* WPC v1.0 Compliant Communication Control

* Output Voltage Conditioning

* Only IC Required Between RX coil and

BQ51011-etcTI.pdf

This datasheet PDF includes multiple part numbers: BQ51013, BQ51011. Please refer to the document for exact specifications by model.

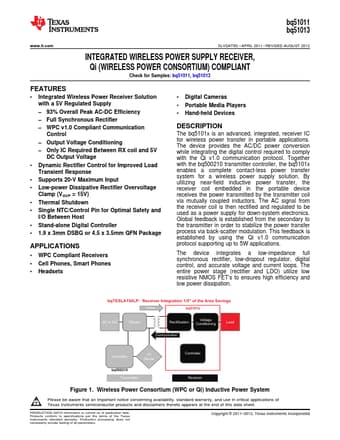

BQ51013 Datasheet Preview Page 2 BQ51013 Datasheet Preview Page 3

Datasheet Details

Part number:

BQ51013, BQ51011

Manufacturer:

Texas Instruments ↗

File Size:

3.29 MB

Description:

Integrated wireless power supply receiver.

Note:

This datasheet PDF includes multiple part numbers: BQ51013, BQ51011.
Please refer to the document for exact specifications by model.
