BQ78412 Datasheet - Texas Instruments

Pb-Acid Battery State-of-Charge Indicator

BQ78412 Features

* 1

* Designed for Use with 12-V Lead-Acid Batteries in Consumer UPS Systems

* Programmable Cell Models for Enhanced Pb-Acid Gas Gauging Performance

* Provides 10-LED Bar Graph of Run-Time Remaining During Discharge and % Capacity During Charge

* Can Be Easily Integrate

BQ78412 General Description

The bq78412 Pb-Acid Battery State-of-Charge (SoC) Indicator with Run-Time Display is a complete stand-alone battery gas-gauge solution designed for single 12V Pb-Acid batteries. The bq78412 displays remaining Run-Time-To-Empty during discharge and Percent (%) capacity during charge using a 10-LED (l.

BQ78412 Datasheet (1.57 MB)

Preview of BQ78412 PDF

Datasheet Details

Part number:

BQ78412

Manufacturer:

Texas Instruments ↗

File Size:

1.57 MB

Description:

Pb-acid battery state-of-charge indicator.

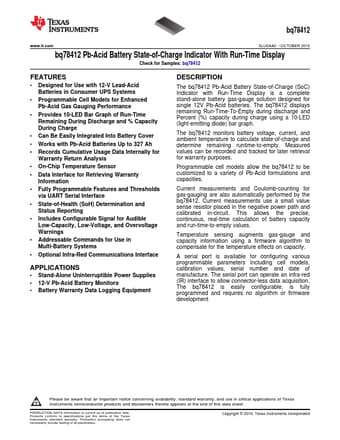

bq78412 www.ti.com SLUSAA0 OCTOBER 2010 bq78412 Pb-Acid Battery State-of-Charge Indicator With Run-Time Display Check for Samples: bq784.
