C245AEP - OCTAL BUS TRANSCEIVER

Product Overview

Texas Instruments

Datasheet Details

Part number	C245AEP
Manufacturer	Texas Instruments
File Size	740.26 KB
Description	OCTAL BUS TRANSCEIVER
Datasheet	C245AEP Datasheet

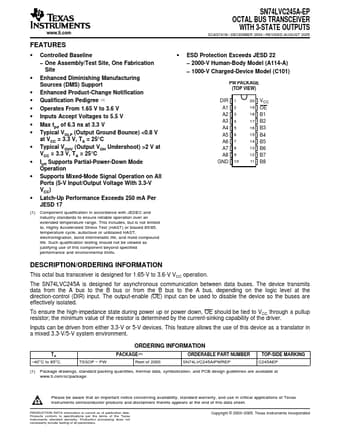

Additional preview pages of the C245AEP datasheet.

Product details

Description

ORDERING INFORMATION This octal bus transceiver is designed for 1.65-V to 3.6-V VCC operation.The SN74LVC245A is designed for asynchronous communication between data buses.The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.The output-enable (OE) input can be used to disable the device so the buses are effectively isolated.To ensure the high-impedance state during power up or power down, OE sh

Features

Controlled Baseline.
One Assembly/Test Site, One Fabrication Site.
Enhanced Diminishing Manufacturing Sources (DMS) Support.
Enhanced Product-Change Notification.
Qualification Pedigree (1).
Operates From 1.65 V to 3.6 V.
Inputs Accept Voltages to 5.5 V.
Max tpd of 6.3 ns at 3.3 V.
Typical VOLP (Output Ground Bounce) 2 V at VCC = 3.3 V.
