CBT16245C - 16-BIT FET BUS SWITCH 5-V BUS SWITCH

CBT16245C Description

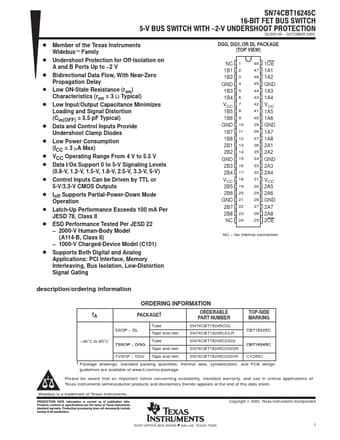

SN74CBT16245C 16ĆBIT FET BUS SWITCH 5ĆV BUS SWITCH WITH -2ĆV UNDERSHOOT PROTECTION SCDS139 * OCTOBER 2003 D Member of the Texas Instruments W.
ordering information ORDERING INFORMATION TA PACKAGE† ORDERABLE PART NUMBER TOP-SIDE MARKING SSOP. DL Tube Tape and reel SN74CBT16245.

CBT16245C Applications

* PCI Interface, Memory Interleaving, Bus Isolation, Low-Distortion Signal Gating DGG, DGV, OR DL PACKAGE (TOP VIEW) NC 1 1B1 2 1B2 3 GND 4 1B3 5 1B4 6 VCC 7 1B5 8 1B6 9 GND 10 1B7 11 1B8 12 2B1 13 2B2 14 GND 15 2B3 16 2B4 17 VCC 18 2B5 19 2B6 20 GND 21 2B7 22 2B8 23 NC 24 48 1OE 47 1A1 46 1A2 45
