CC1201 - High-Performance RF Transceiver

Name: CC1201
SKU: CC1201-1545780

Texas Instruments

📥 Download Datasheet

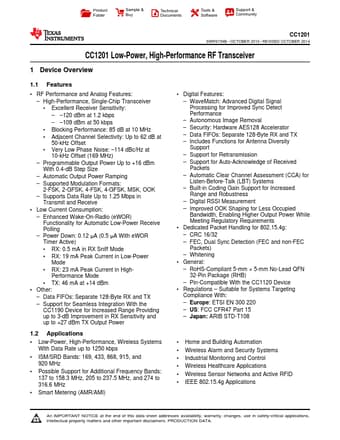

CC1201 Datasheet Preview — Preview of CC1201 PDF

Datasheet Details

Part number	CC1201
Manufacturer	Texas Instruments
File Size	1.80 MB
Description	High-Performance RF Transceiver
Datasheet	CC1201-etcTI.pdf

CC1201 Product details

Description

The CC1201 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. 190 MHz, 410 475 MHz, and 820 950 MHz.

Features

1.
RF Performance and Analog Features:.
High-Performance, Single-Chip Transceiver.
Excellent Receiver Sensitivity:.
120 dBm at 1.2 kbps.
109 dBm at 50 kbps.
Blocking Performance: 85 dB at 10 MHz.
Adjacent Channel Selectivity: Up to 62 dB at 50-kHz Offset.
Very Low Phase Noise:.
114 dBc/Hz at 10-kHz Offset (169 MHz).
Programmable Output Power Up to +16 dBm With 0.4-dB Step Size.
Aut.
